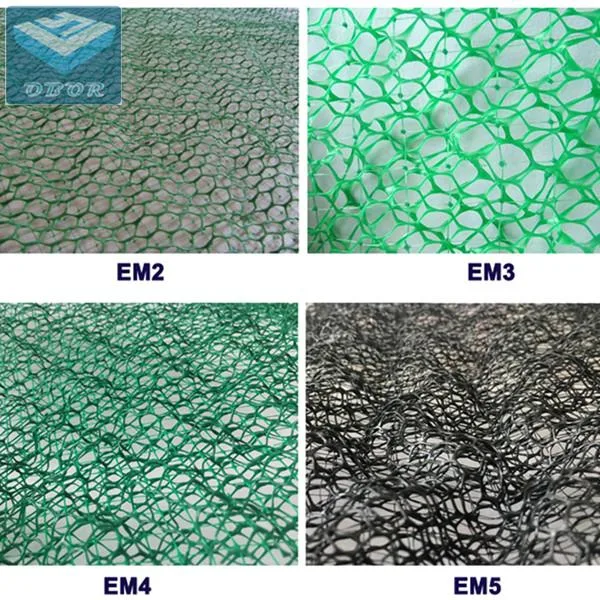

3D Geomat EM2 EM3 EM4 EM5

3D Geomat EM2 EM3 EM4 EM5

3D Geomat is a new-typed seed planting material with tridimensional structure, which can effectively prevent the soil being washed away, increase the area of the virescence, improve the environment.

1.Specifications

1)Material: HDPE

2) Model: EM2, EM3, EM4, EM5, EM6
3) Tensile strength:0.8 ~ 3.5kn/m.
4) Thickness:10~20mm
5)Unit weight:220-480g/m2
6) Width:1mor2m
7)Lenth:30-50m

8) Color: Green and Black

2.Technical Data:

Standard Type (Slope Angle≤45°)

3.Application

1). It can save embankment from erosion by wind and rain until the turf is generated.

2). It can keep seed distribution evenly on the slope from the wind and rain to be lost.

3). Mat can absorb large amounts of heat energy to enhance geothermal, and promote the seed germination,

extend the growth period of plants.

4). The compound protection layer formed by plants grown together can with stand high water level and washout

of flow.

5).It can instead of concrete,asphalt ,stone and so on slope materials. Mainly used in highway, railway, river

channel, embankment and other slope surface protection.

4.Advantages

1). It can greatly reduce the project cost.

2). Because of using polymer materials, the chemical stability is good, no pollution for the environment.

3). The construction is simply, easy operation.
