HDPE Smooth Geomembrane Manufacturer
HDPE geomembrane is produced from HDPE (high density polyethylene ) resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component.

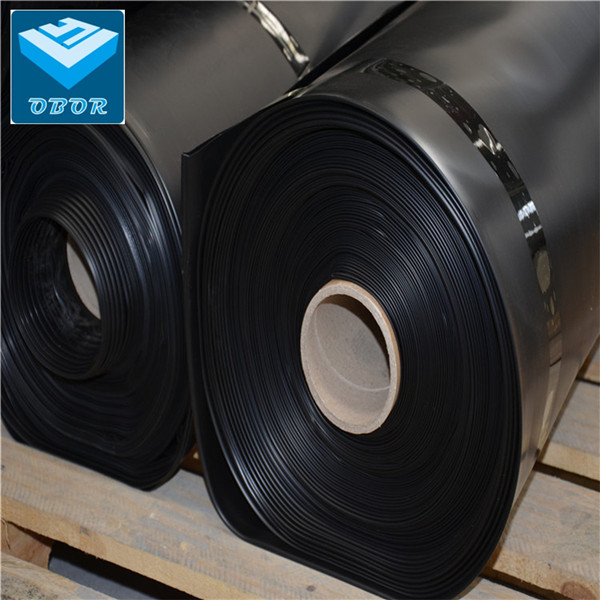

HDPE Geomembrane Photos
Basic Information
● Main Thickness: 0.3mm, 0.4mm,0.5mm,0.75mm,1.0mm,1.25mm,1.5mm,2.0mm,2.5mm,
3.0mm,4.0mm,5.0mm
● Main Width: 2.0m, 3.0m, 4.0m, 5.0m, 5.8m, 6.0m,7.0m, 8.0m,10m,12m
● Main Length: 50m/100m/150m/200m/250m
● Materials:We can produce HDPE/LDPE/LLDPE/PVC geomembrane

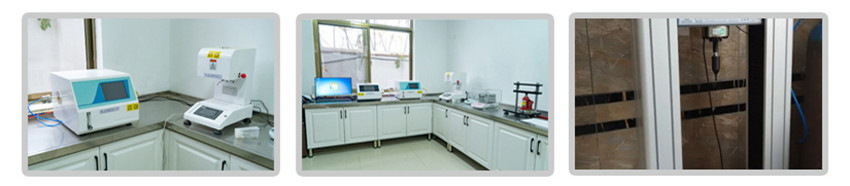

HDPE Smooth Geomembrane Testing Report, Good Quality,Factory Price

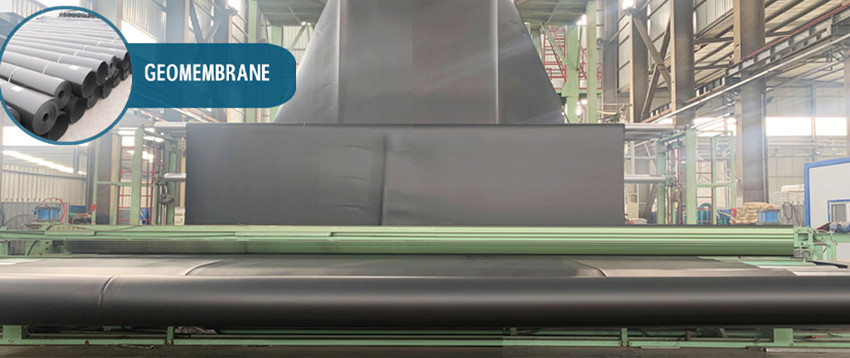

HDPE Smooth Geomembrane Production Lines
HDPE Smooth Geomembrane Specification：(GRI GM13 ASTM Standard)
|
Properties |
Test method ASTM |
GMS0.75 |
GMS1.0 |
GMS1.25 |
GMS1.5 |
GMS2.0 |
GMS2.5 |
|
Thickness |
D5199 |
0.75mm |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
|
Density (≥ g/cc) |
D1505 |
0.940 |
0.940 |
0.940 |
0.940 |
0.940 |
0.940 |
|
Tensile Properties(≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
11kN/m 20kN/m 12% 700% |
15kN/m 27kN/m 12% 700% |
18kN/m 33kN/m 12% 700% |
22kN/m 40kN/m 12% 700% |
29kN/m 53kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
|
Tear Resistance (≥) |
D 1004 |
93 N |
125 N |
156 N |
187 N |
249 N |
311 N |
|
Puncture Resistance (≥) |
D 4833 |
240 N |
320 N |
400 N |
480 N |
640 N |
800 N |
|
Stress Crack Resistance (≥) |
D 5397 |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
|
Carbon Black Content |
D 1603 |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
|
Carbon Black Dispersion |
D 5596 |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
|
Oxidative Induction Time (OIT) (≥) (a)Standard OIT or (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:
9 in Categories 1 or 2 and 1 in Category 3
HDPE Smooth Geomembrane Product Features:

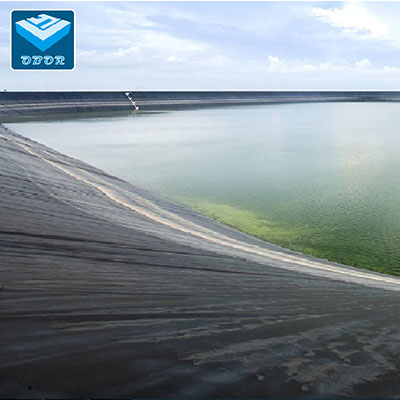

HDPE Smooth Geomembrane Application:
1.Fish farm pond
2.Landfill
3.Artificial river,Artificial lake
4.Mining
5.Biogas Digester
