HDPE Geomembrane pond liner 0.5mm 1.0mm 1.5mm 2.0mm factory price
Shandong OBOR New materials Co.,Ltd is a leading geomembrane pond liner manufacturer,We are specialized in kinds of geomembrane pond liner with over 30 years production experience.Our geomembrane pond liner has been distributed to more than 120 countries around the world.
We supply HDPE geomemrbane pond liner 0.5mm 1.0mm 1.5mm 2.0mm with good quality and factory price.welcome to contact us.
Our advantages:
OBOR --- A Professional geomembrane manufacturer in China
OBOR --- Owning the first 8-meter width geomembrane production line in China
OBOR --- Annual output ≥20,000 tons
OBOR --- Over 30 years production experience
OBOR --- Professional Geomembrane Testing Equipments & Strict quality control.
OBOR --- Has undertaken domestic and overseas projects for more than 30 years.
OBOR --- Good quality geomembrane approved by many Third-party testing organizations such as SGS, BV.
OBOR --- Products distributed to more than 120 countries around the world.

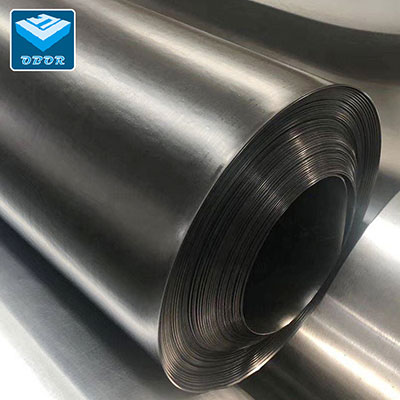

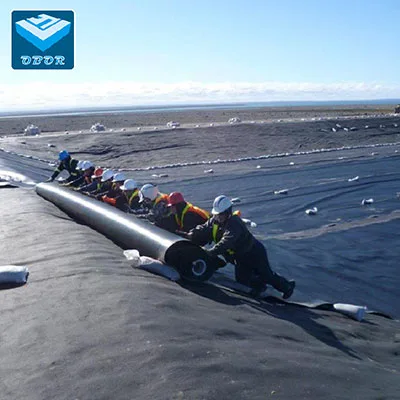

OBOR HDPE Geomembrane Pond Liner Photos
Basic Information
● Main Thickness: 0.3mm, 0.4mm,0.5mm,0.75mm,1.0mm,1.25mm,1.5mm,2.0mm,2.5mm,
3.0mm,4.0mm,5.0mm
● Main Width: 2.0m, 3.0m, 4.0m, 5.0m, 5.8m, 6.0m,7.0m, 8.0m,10m,12m
● Main Length: 50m/100m/150m/200m/250m or as requested.
● Color:Black,white,blue,green
● Optional surface:smooth surface,single surface textured,dual surfaces textured
● Certificate:CE,ISO9001,ISO14001,Bureau Veritas,SGS quality certificate,
● Materials:We can produce HDPE/LDPE/LLDPE/PVC geomembrane
HDPE Smooth Geomembrane Pond Liner Specification:(GRI GM13 ASTM Standard)
Properties |
Test method ASTM |
GMS0.75 |
GMS1.0 |
GMS1.25 |
GMS1.5 |
GMS2.0 |
GMS2.5 |
Thickness |
D5199 |
0.75mm |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
Density (≥ g/cc) |
D1505 |
0.940 |
0.940 |
0.940 |
0.940 |
0.940 |
0.940 |
Tensile Properties(≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
11kN/m 20kN/m 12% 700% |
15kN/m 27kN/m 12% 700% |
18kN/m 33kN/m 12% 700% |
22kN/m 40kN/m 12% 700% |
29kN/m 53kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) |
D 1004 |
93 N |
125 N |
156 N |
187 N |
249 N |
311 N |
Puncture Resistance (≥) |
D 4833 |
240 N |
320 N |
400 N |
480 N |
640 N |
800 N |
Stress Crack Resistance (≥) |
D 5397 |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
Carbon Black Content |
D 1603 |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
2.0-3.0% |
Carbon Black Dispersion |
D 5596 |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Note(1) |
Oxidative Induction Time (OIT) (≥) (a)Standard OIT or (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:
9 in Categories 1 or 2 and 1 in Category 3
HDPE Smooth Geomembrane Pond Liner Product Features:
HDPE Smooth Geomembrane Pond Liner Application:
1.Fish farm pond,Shrimp pond,tank,dam etc.
2.Landfill
3.Artificial river,Artificial lake
4.Mining
5.Biogas Digester
6.Water Treatment System etc.
